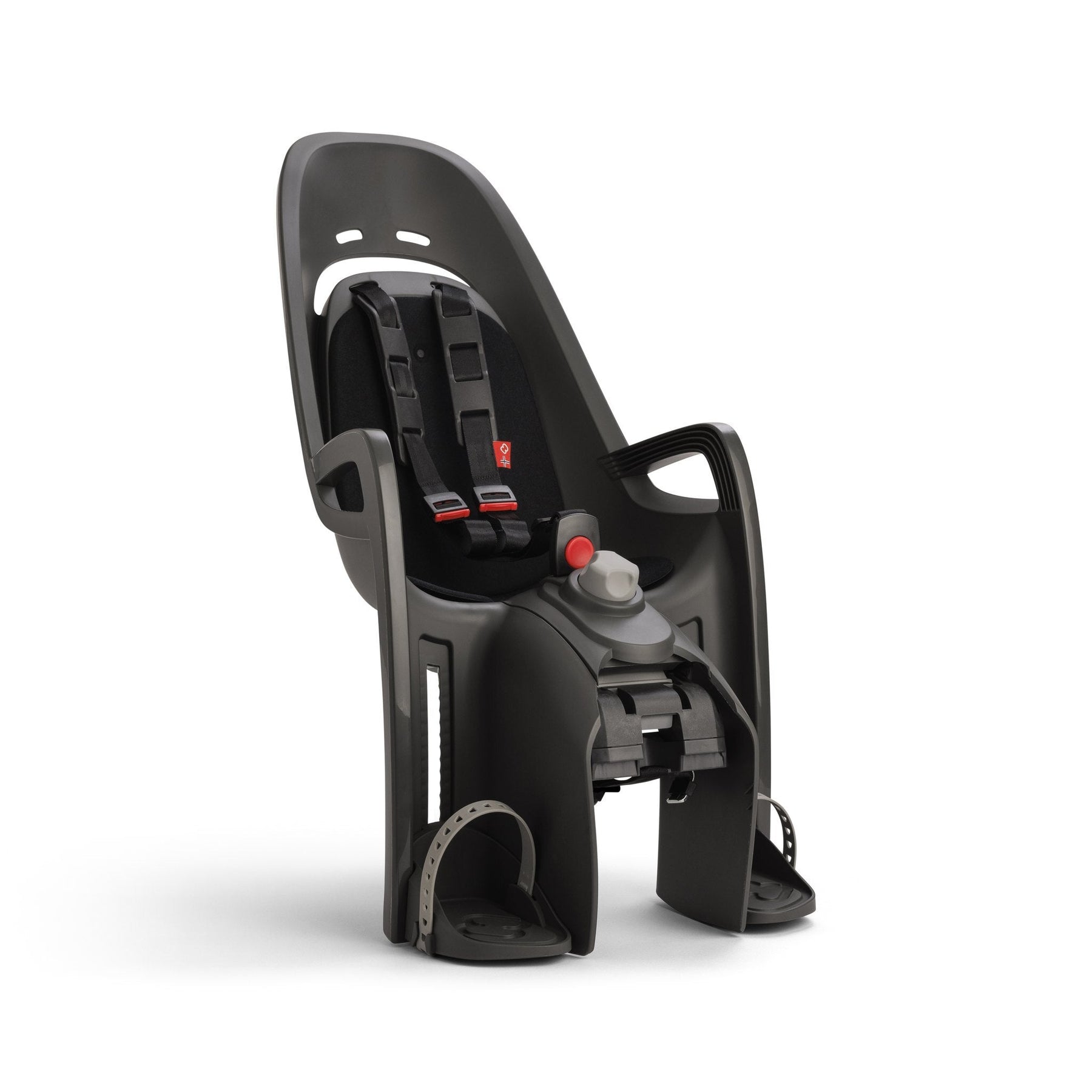

Hamax Zenith Relax Child Bike Seat with Carrier Adapter
A rack-mounted rear child seat for younger passengers, with a 12.5 degree recline, adjustable footrests and a carrier adapter for compatible rear racks.
Bike fit and setup
Hamax Zenith Relax with Carrier Adapter. Follow the seat and rack mounting requirements.
Sun Chaser confirms this accessory for Alpha V3, Nova V3, Alpha V2, Nova V2, Halo, ADO Air One Ultra.
Mounting: This listing includes the Carrier Adapter for the Zenith Relax; it is not a MIK child seat. The confirmed bike pairing still requires the seat’s rack, child-fit and installation checks below. MIK compatibility alone is not child-seat approval.
Fit and compatibility

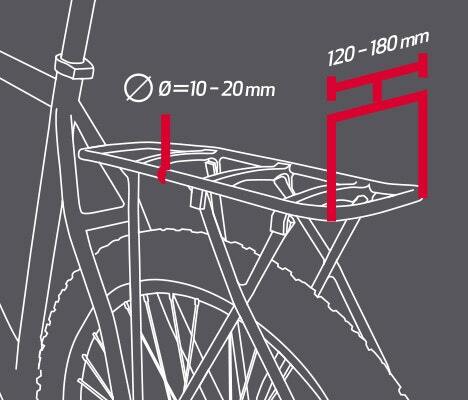

The Hamax Zenith Relax with Carrier Adapter is designed to mount to a suitable luggage carrier. The rear rack must be approved to carry 25-30 kg, with round tubes from 10-20 mm and a rack width between 120-180 mm.
It can suit compatible e-bikes, but the rack rating, rack shape, wheel clearance and rider handling should be checked before fitting.
Key features

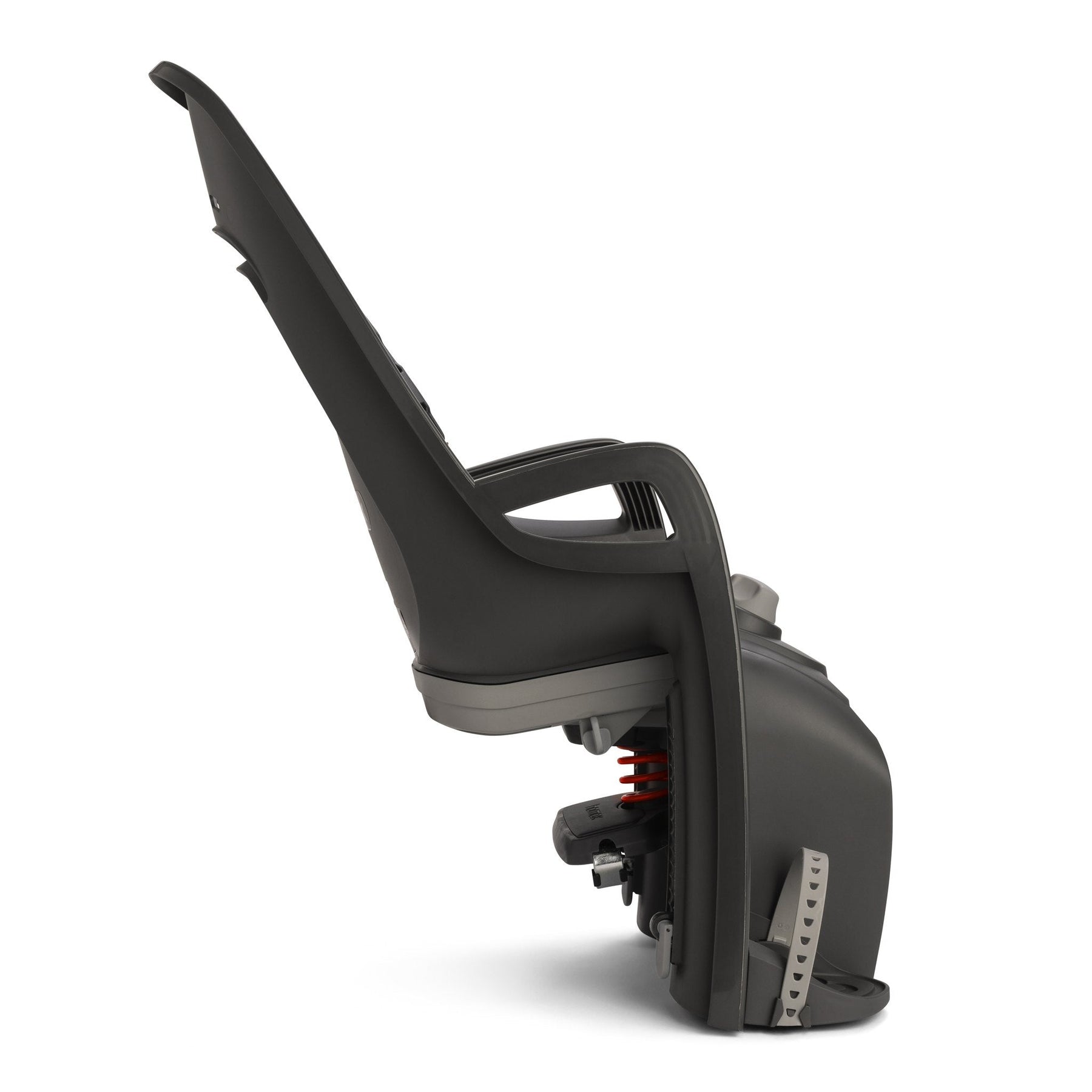

- Reclining seat: 12.5 degree recline for a more comfortable ride
- Child fit: For children from approx. 9 months and up to 22 kg
- Easy adjustment: One-hand operated harness, buckle and footrests
- Comfort: Adjustable footrests, foot straps and changeable padding

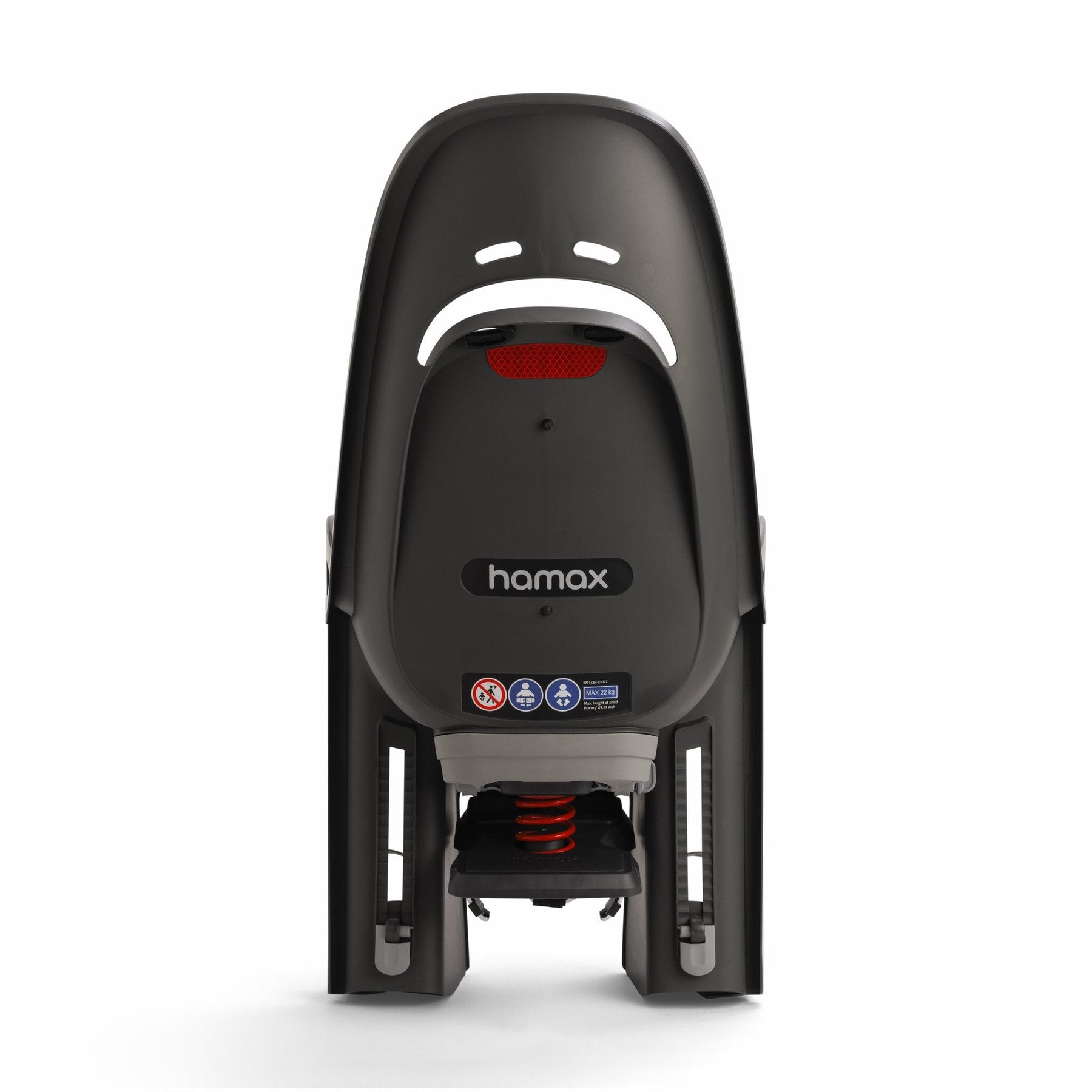

- Visibility: Reflector on the back of the seat
Tech specification
- Product: Hamax Zenith Relax with Carrier Adapter
- Mounting style: Rear rack / luggage carrier mounted
- Minimum age: Approx. 9 months
- Maximum child weight: 22 kg
- Recline: 12.5 degrees
- Rack width: 120-180 mm
- Rack tube diameter: 10-20 mm round tubes
- Rack load rating: Must be approved to carry 25-30 kg
Before fitting
Do not assume this seat fits every e-bike rack. Confirm the rack is load-rated, the tubes are round, the rack width is within spec and the seat does not interfere with the wheel, brakes, cables or rider position.
FAQ
Is this child seat suitable for e-bikes?
Yes, it can be suitable for compatible e-bikes, as long as the rear carrier meets the mounting and load requirements.
What age child can use it?
Hamax lists the minimum age as approx. 9 months, with a maximum child weight of 22 kg. The child should also be able to sit safely and comfortably in the seat.
Will it fit my Sun Chaser eBike?
It depends on the exact bike, rear rack and mounting area. Send us your bike model and a few clear photos of the rear rack if you want us to check before ordering.
Does the rack need a specific rating?
Yes. The luggage carrier must be approved to carry 25-30 kg, with round tubes from 10-20 mm and a width between 120-180 mm.
