Name: Sun Chaser Alpha V3 Fat Tyre Electric Bike
Brand: Sun Chaser Ebikes
Price: 3490.0 AUD
Rating: 5 (1 reviews)

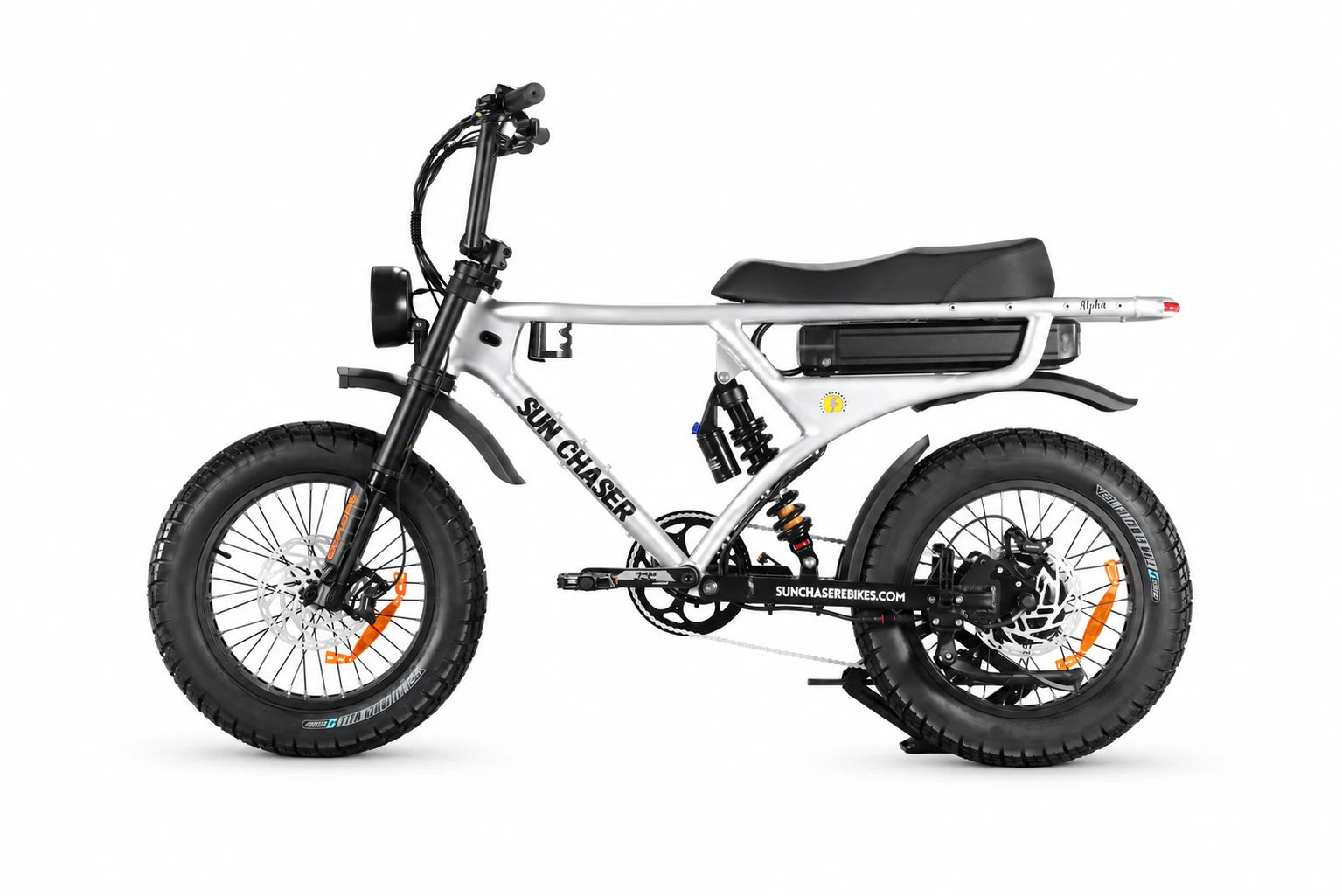

Sun Chaser AlphaV3 silver electric bike — non drive side

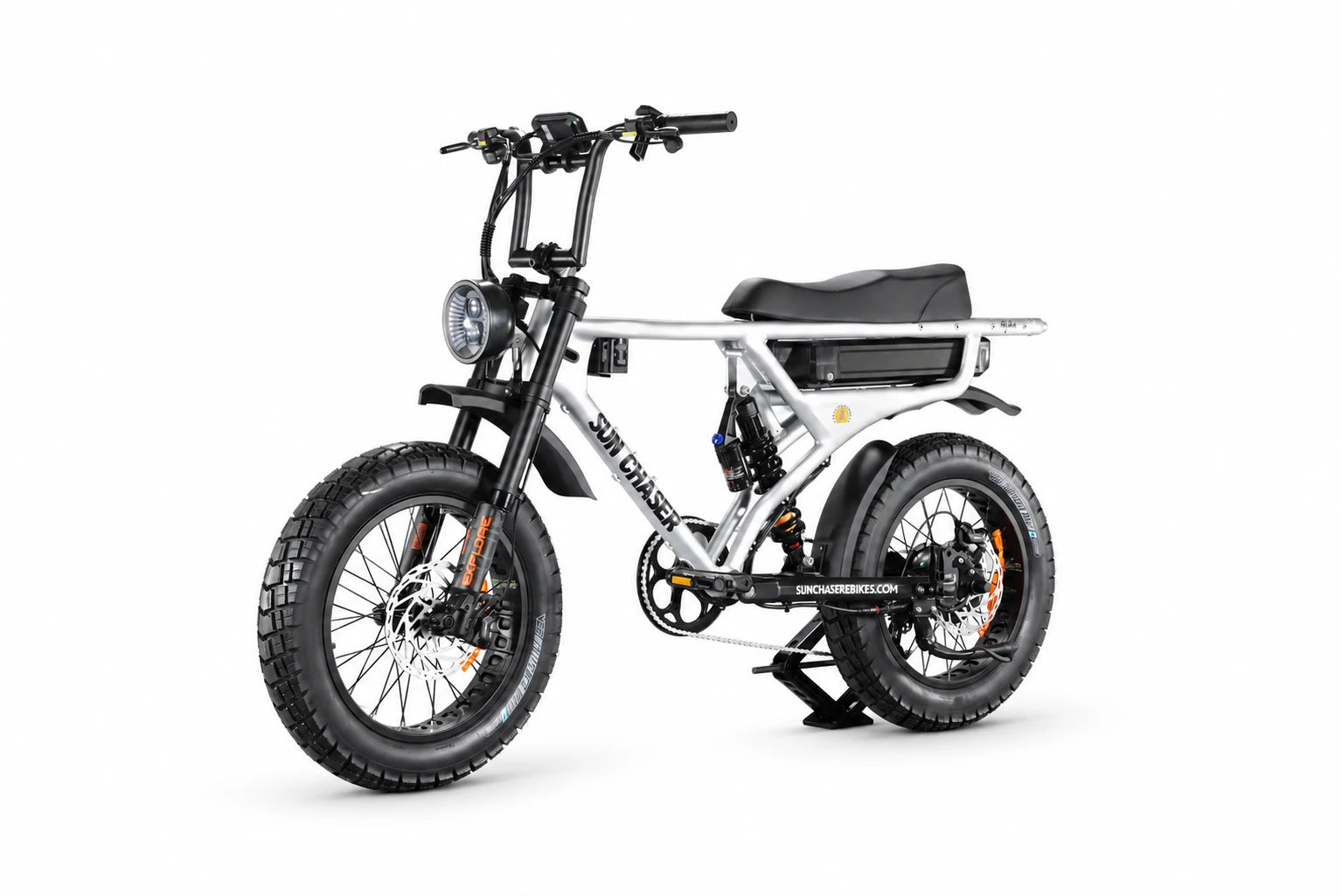

Sun Chaser AlphaV3 silver electric bike — non drive front three quarter

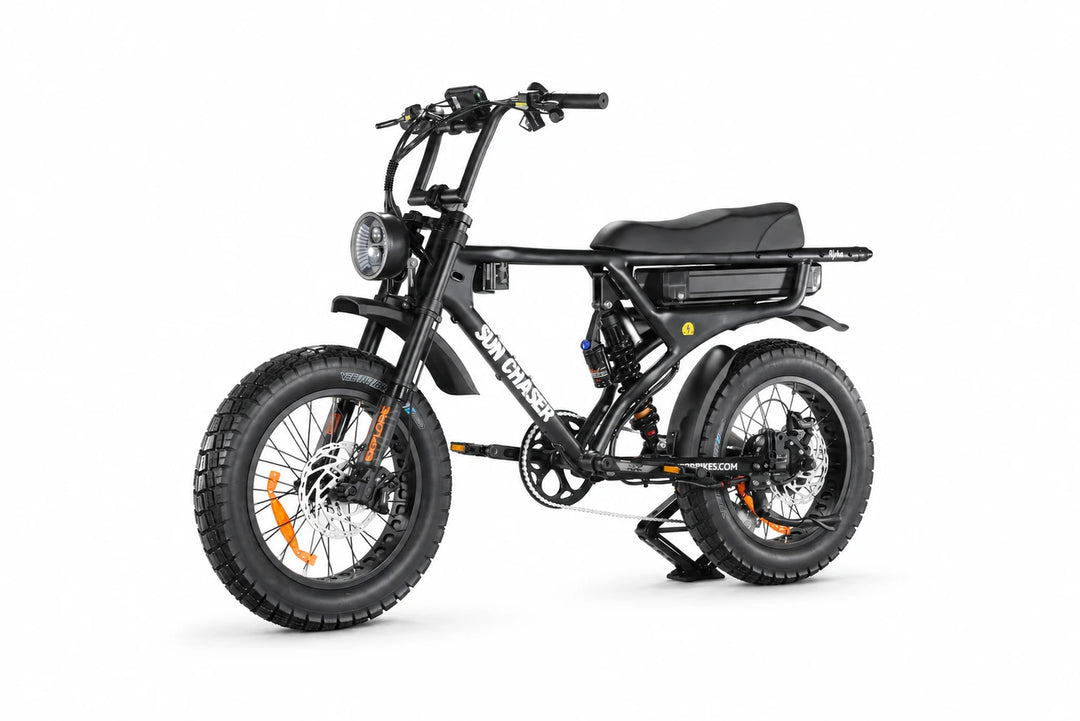

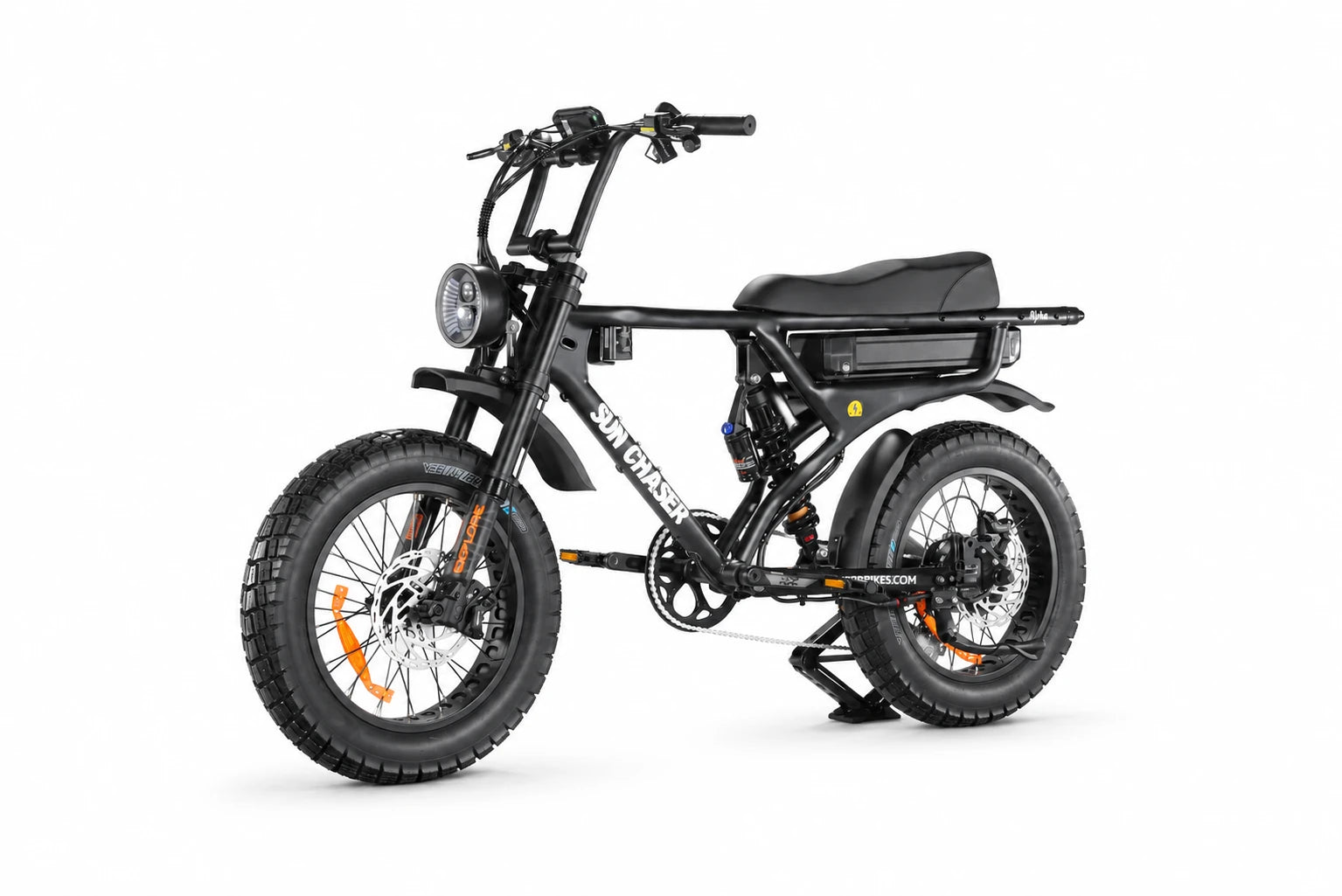

Sun Chaser AlphaV3 black electric bike — non drive front three quarter

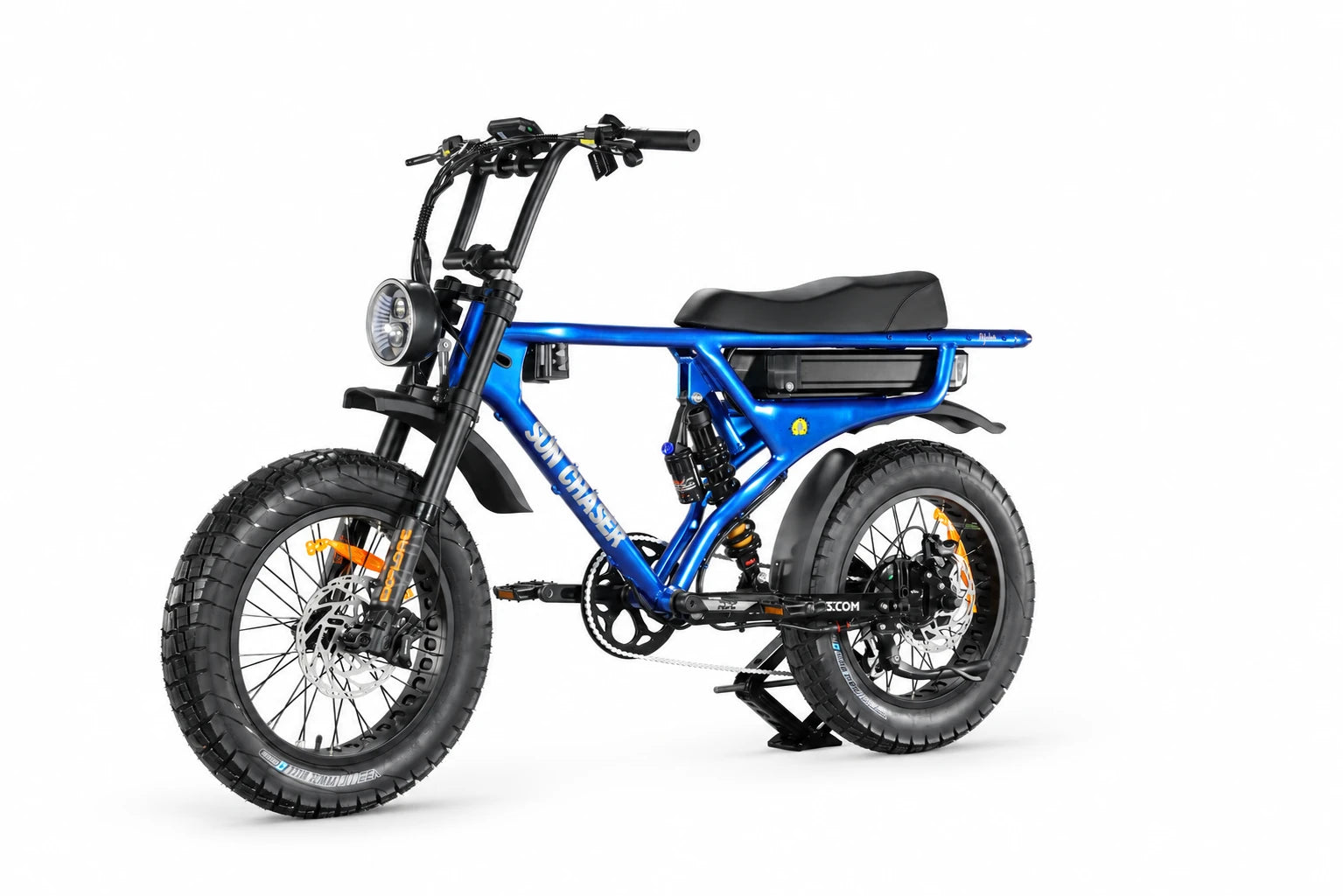

Sun Chaser AlphaV3 blue electric bike — non drive front three quarter

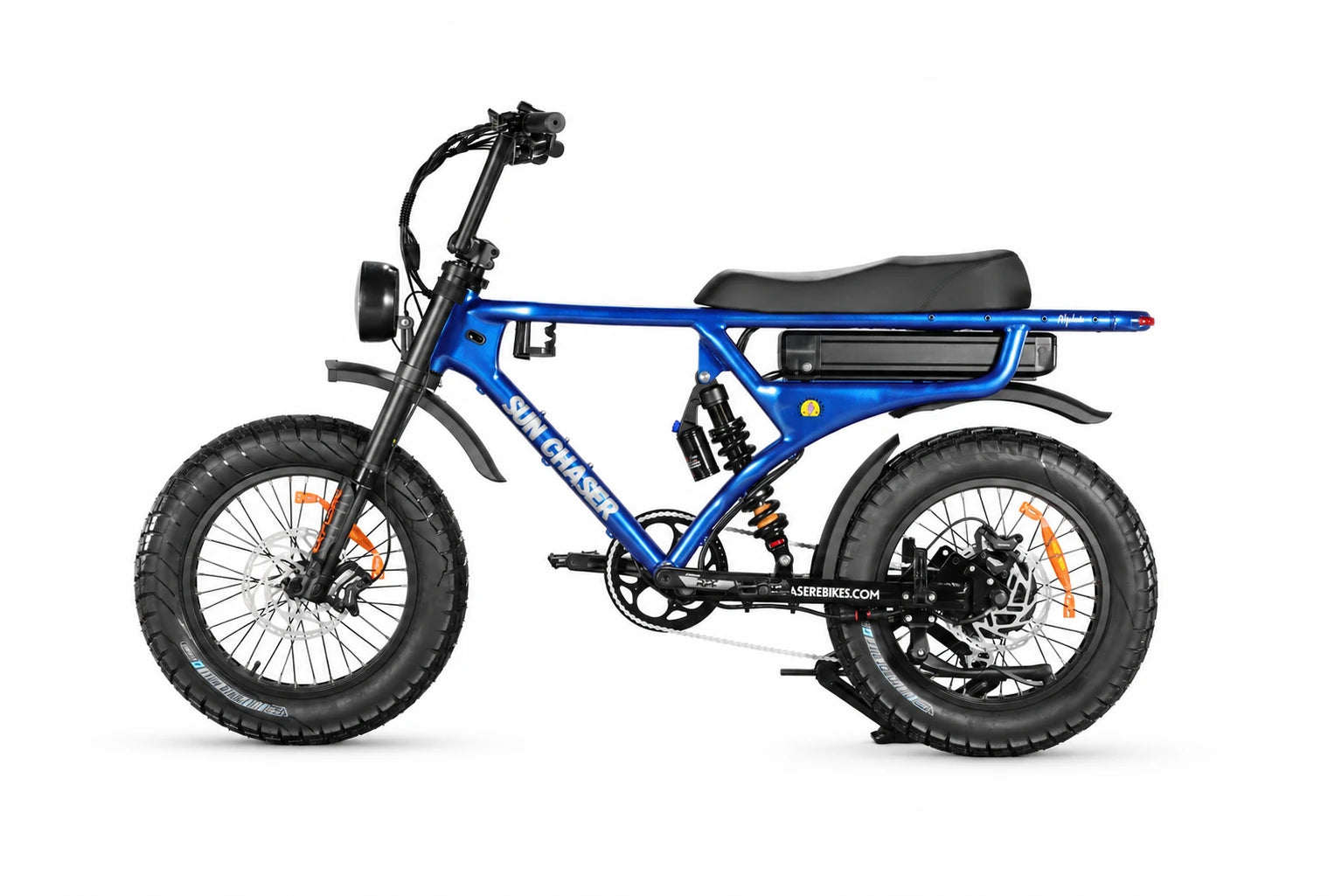

Sun Chaser AlphaV3 blue electric bike — non drive side

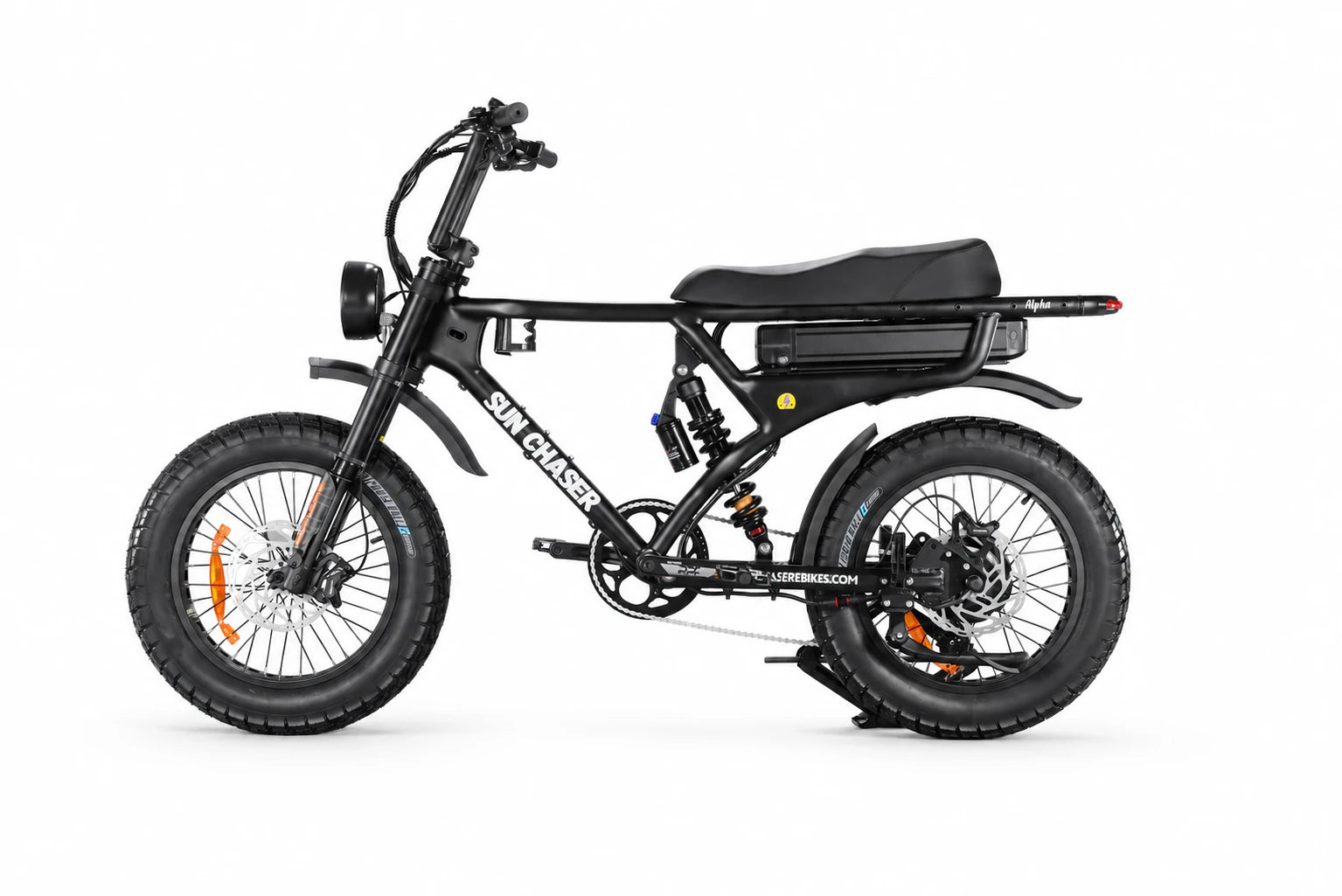

Sun Chaser AlphaV3 black electric bike — non drive side

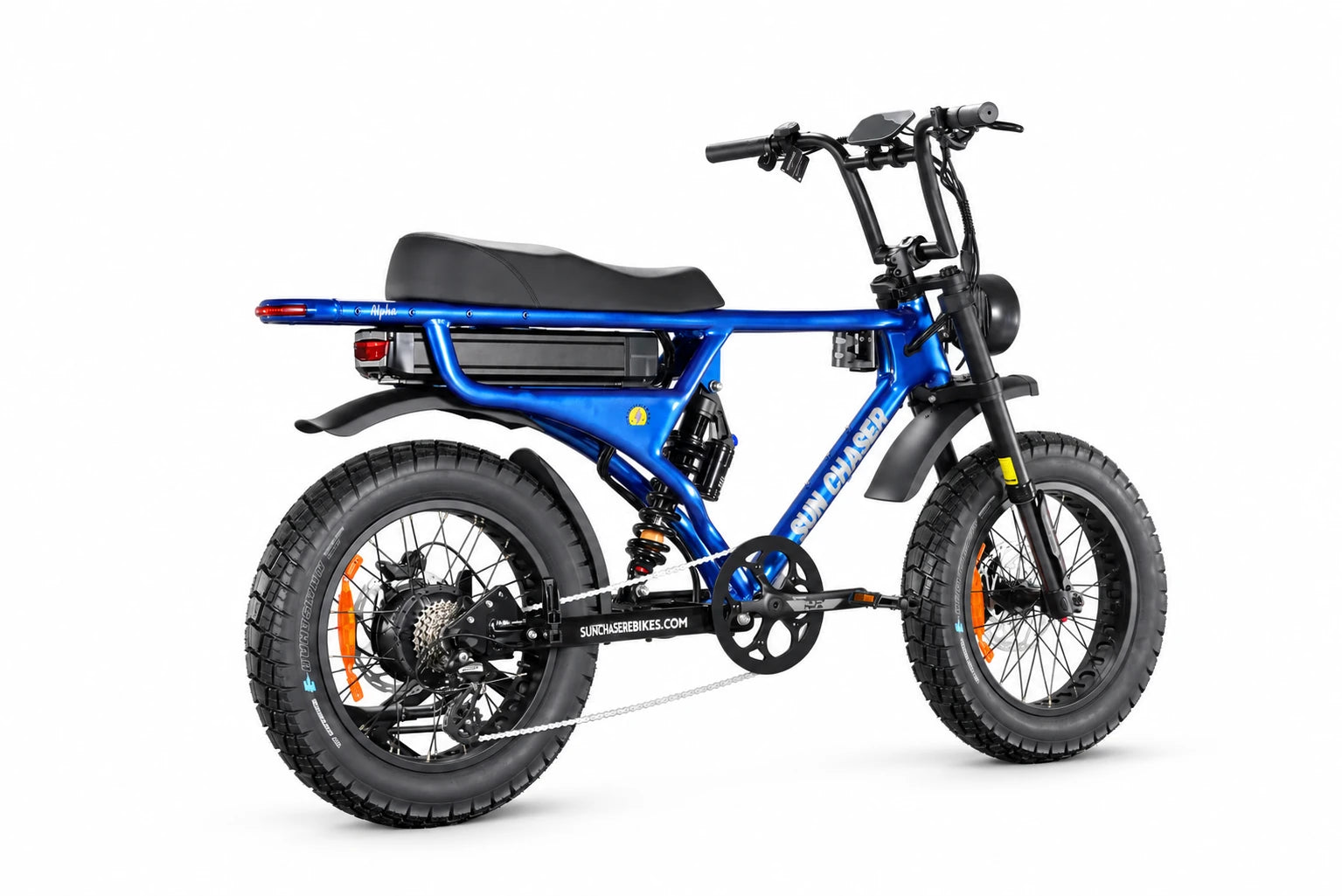

Sun Chaser AlphaV3 blue electric bike — drive side rear three quarter

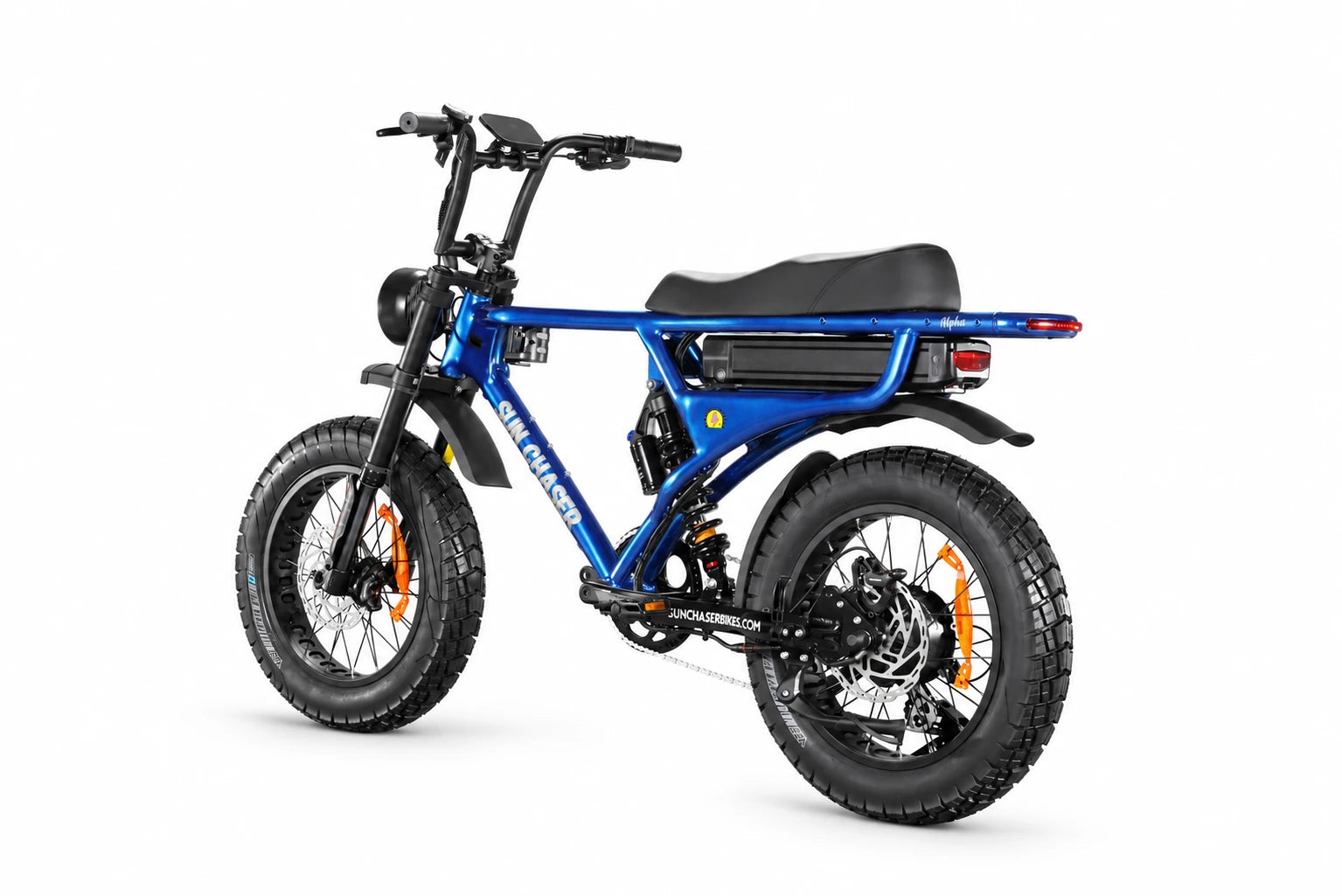

Sun Chaser AlphaV3 blue electric bike — non drive rear three quarter

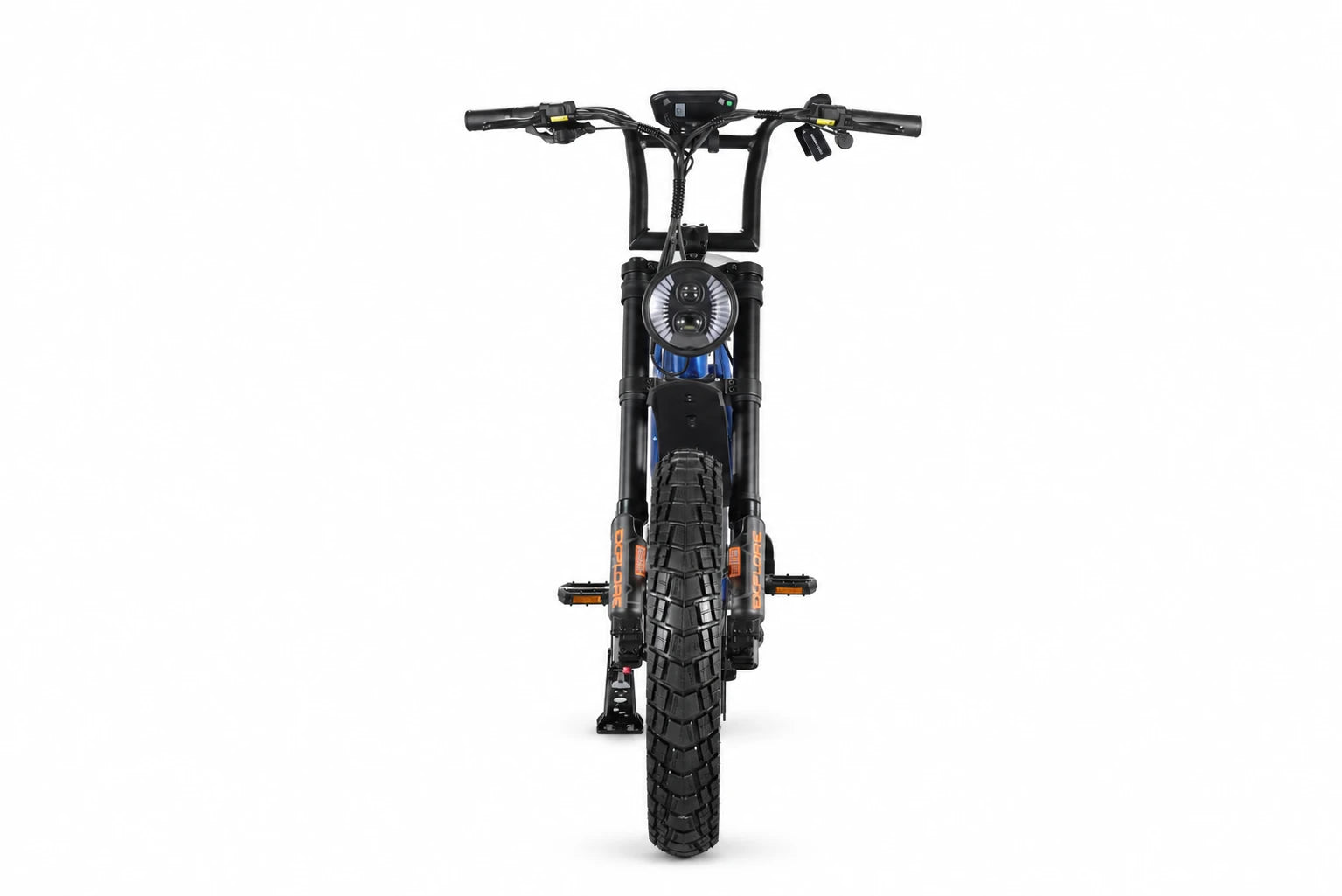

Sun Chaser AlphaV3 blue electric bike — front view

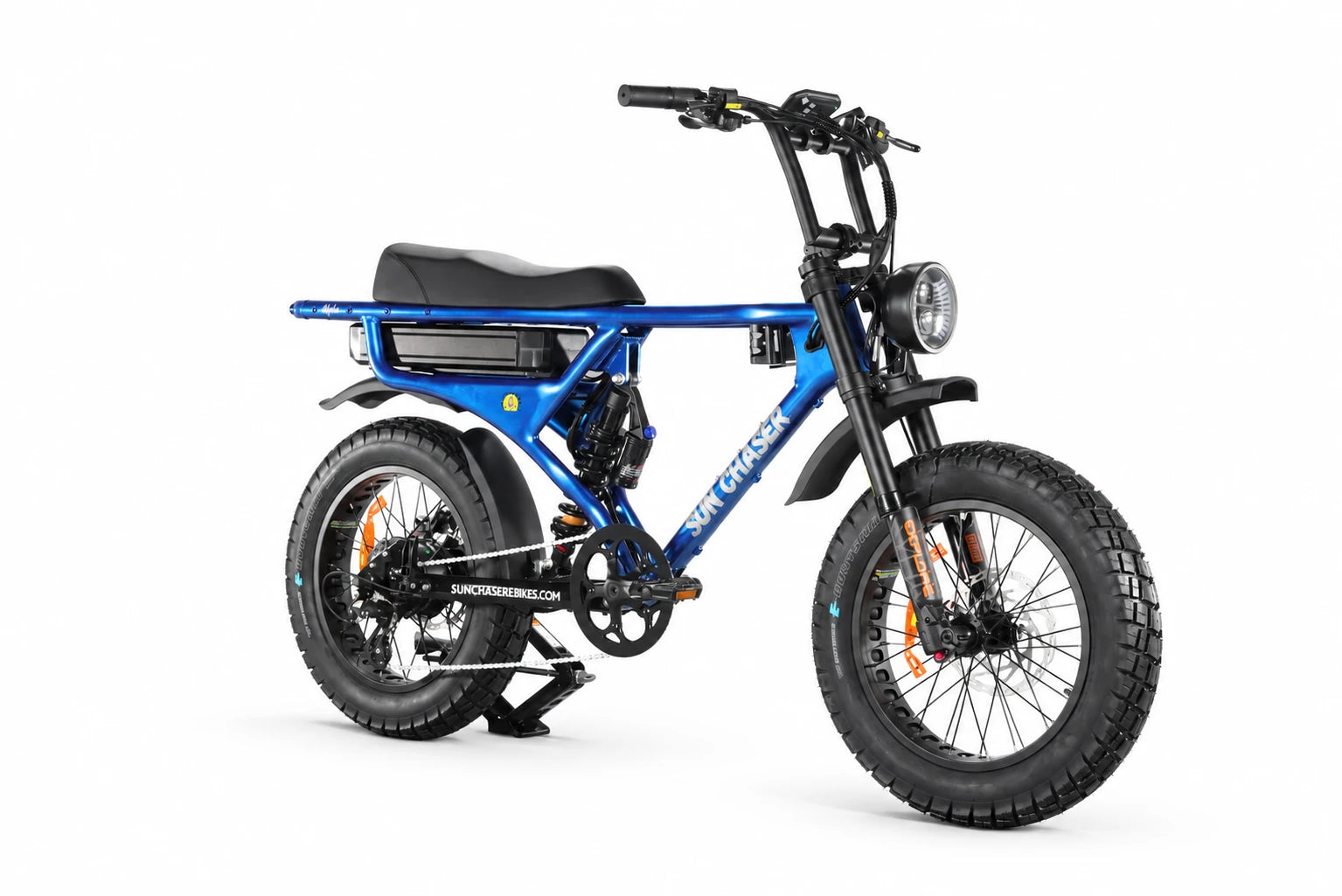

Sun Chaser AlphaV3 blue electric bike — drive side front three quarter

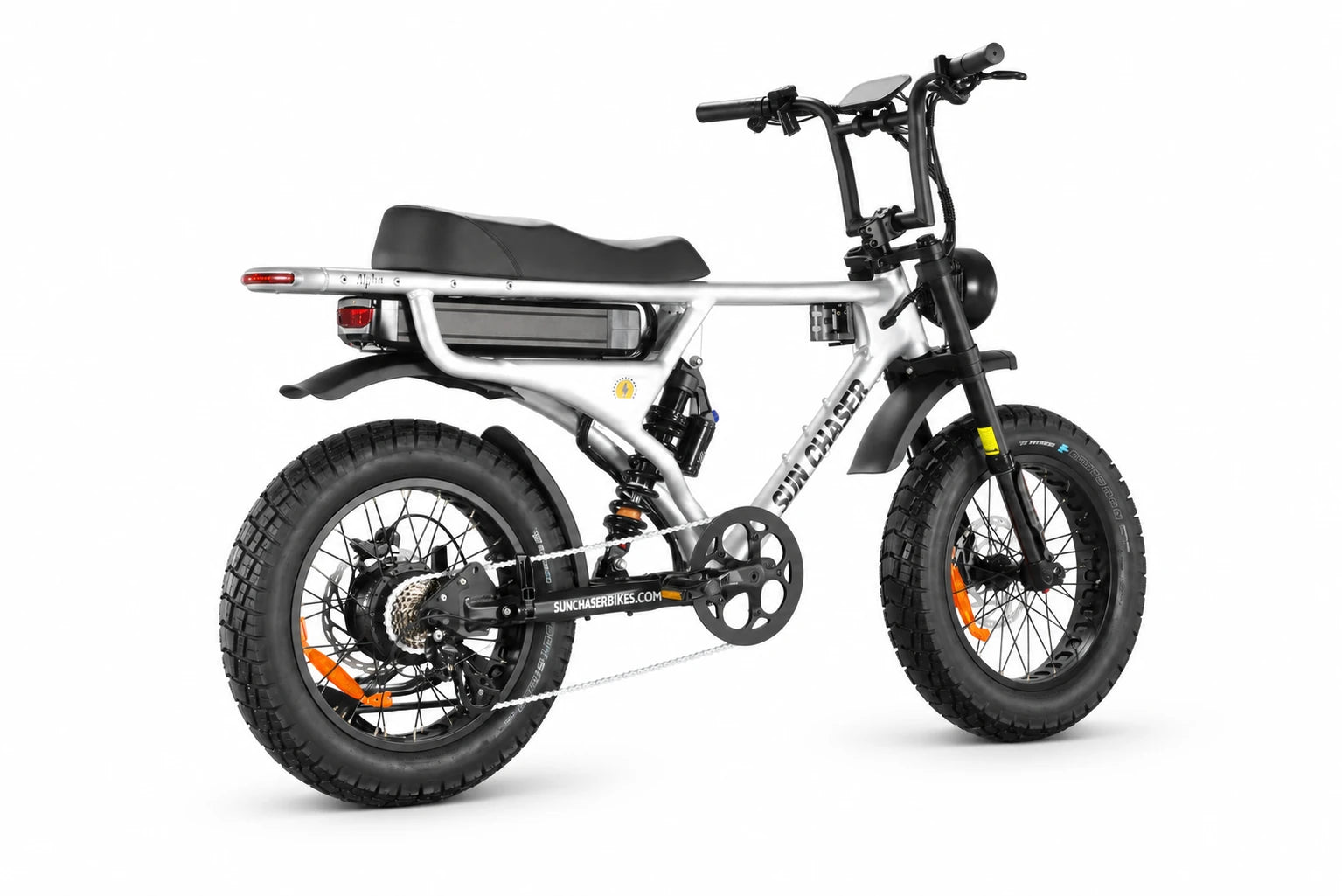

Sun Chaser AlphaV3 silver electric bike — drive side rear three quarter

Sun Chaser AlphaV3 silver electric bike — drive side front three quarter

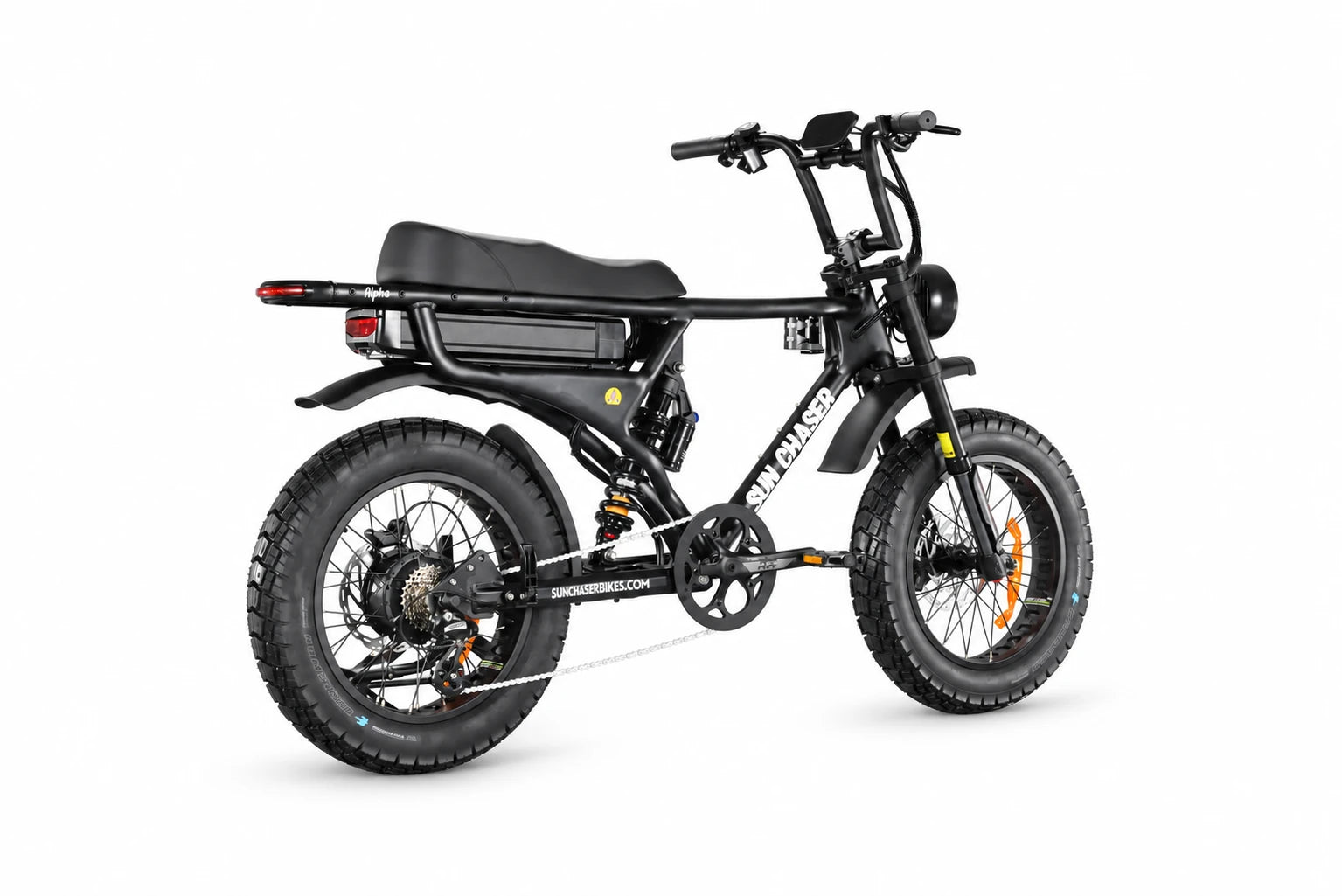

Sun Chaser AlphaV3 black electric bike — drive side rear three quarter

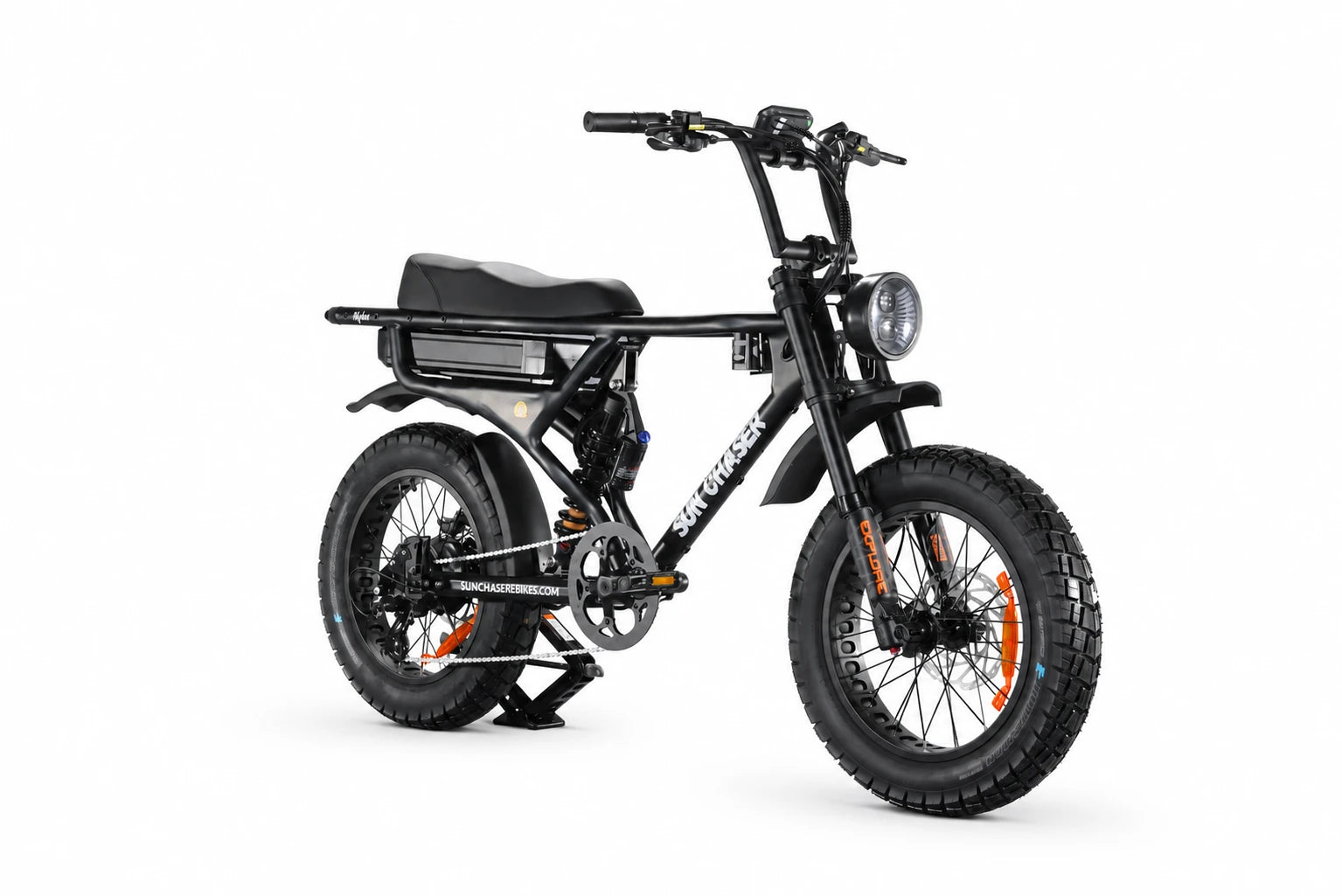

Sun Chaser AlphaV3 black electric bike — drive side front three quarter

$3,490.00

Tax included. Shipping calculated at checkout.

AlphaV3 at a glance

Battery 48V 25Ah lithium battery with Samsung cells

Range Up to 120km; varies with riding conditions

Motor / output BAFANG 48V rear motor limited to 250W; factory set to 25km/h

Brakes / tyres 4-piston hydraulic brakes (203mm), rear and front adjustable suspension

Best suited to Fun family rides and everyday adventures

Local support Gold Coast support, setup advice, servicing and parts guidance

Range varies with rider weight, passenger or cargo load, assist level, speed, terrain, tyre pressure, wind and other riding conditions.

Colour — Blue

Blue

Black

Silver

Book a test ride Choose options

Test ride available - Try before you buy at Sun Chaser eBikes.

Local support - Real help from our Gold Coast workshop.

Warranty & after-sale care - Covered locally, with support after purchase.

Fast Australia-wide delivery - Packed carefully and shipped across Australia.

[{"id":54572615926044,"title":"Blue","option1":"Blue","option2":null,"option3":null,"sku":"EBK-ALP-V3-48V-BLU-AU","requires_shipping":true,"taxable":true,"featured_image":{"id":53116580954396,"product_id":10978674114844,"position":4,"created_at":"2026-09-16T13:27:26+10:00","updated_at":"2026-09-16T13:27:26+10:00","alt":"Sun Chaser AlphaV3 blue electric bike — non drive front three quarter","width":1535,"height":1024,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-blue-non-drive-front-three-quarter.webp?v=1789529246","variant_ids":[54572615926044]},"available":true,"name":"Sun Chaser Alpha V3 Fat Tyre Electric Bike - Blue","public_title":"Blue","options":["Blue"],"price":349000,"weight":50000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Sun Chaser AlphaV3 blue electric bike — non drive front three quarter","id":43897254412572,"position":4,"preview_image":{"aspect_ratio":1.499,"height":1024,"width":1535,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-blue-non-drive-front-three-quarter.webp?v=1789529246"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54572615958812,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"EBK-ALP-V3-48V-BLK-AU","requires_shipping":true,"taxable":true,"featured_image":{"id":53116582330652,"product_id":10978674114844,"position":3,"created_at":"2026-09-16T13:27:45+10:00","updated_at":"2026-09-16T13:27:46+10:00","alt":"Sun Chaser AlphaV3 black electric bike — non drive front three quarter","width":1535,"height":1025,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-black-non-drive-front-three-quarter.webp?v=1789529266","variant_ids":[54572615958812]},"available":true,"name":"Sun Chaser Alpha V3 Fat Tyre Electric Bike - Black","public_title":"Black","options":["Black"],"price":349000,"weight":50000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Sun Chaser AlphaV3 black electric bike — non drive front three quarter","id":43897255756060,"position":3,"preview_image":{"aspect_ratio":1.498,"height":1025,"width":1535,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-black-non-drive-front-three-quarter.webp?v=1789529266"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54572615991580,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":"EBK-ALP-V3-48V-SLV-AU","requires_shipping":true,"taxable":true,"featured_image":{"id":53116581675292,"product_id":10978674114844,"position":2,"created_at":"2026-09-16T13:27:38+10:00","updated_at":"2026-09-16T13:27:38+10:00","alt":"Sun Chaser AlphaV3 silver electric bike — non drive front three quarter","width":1535,"height":1025,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-silver-non-drive-front-three-quarter.webp?v=1789529258","variant_ids":[54572615991580]},"available":true,"name":"Sun Chaser Alpha V3 Fat Tyre Electric Bike - Silver","public_title":"Silver","options":["Silver"],"price":349000,"weight":50000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Sun Chaser AlphaV3 silver electric bike — non drive front three quarter","id":43897255100700,"position":2,"preview_image":{"aspect_ratio":1.498,"height":1025,"width":1535,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-silver-non-drive-front-three-quarter.webp?v=1789529258"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":54572615926044,"title":"Blue","option1":"Blue","option2":null,"option3":null,"sku":"EBK-ALP-V3-48V-BLU-AU","requires_shipping":true,"taxable":true,"featured_image":{"id":53116580954396,"product_id":10978674114844,"position":4,"created_at":"2026-09-16T13:27:26+10:00","updated_at":"2026-09-16T13:27:26+10:00","alt":"Sun Chaser AlphaV3 blue electric bike — non drive front three quarter","width":1535,"height":1024,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-blue-non-drive-front-three-quarter.webp?v=1789529246","variant_ids":[54572615926044]},"available":true,"name":"Sun Chaser Alpha V3 Fat Tyre Electric Bike - Blue","public_title":"Blue","options":["Blue"],"price":349000,"weight":50000,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Sun Chaser AlphaV3 blue electric bike — non drive front three quarter","id":43897254412572,"position":4,"preview_image":{"aspect_ratio":1.499,"height":1024,"width":1535,"src":"\/\/sunchaserebikes.com\/cdn\/shop\/files\/sun-chaser-alpha-v3-blue-non-drive-front-three-quarter.webp?v=1789529246"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Sun Chaser family eBikes

Alpha V3 — the next generation of our flagship fat tyre e-bike

EPAC-compliant electric bike in its supplied road-use configuration.

The Alpha V3 carries our flagship Alpha range forward with a carefully chosen mix of adjustable dual suspension, connected features and everyday equipment. Its 20 × 4 inch fat tyres and 48V 25Ah Samsung-cell battery suit riders planning commutes, local trips and family outings.

Expected arrival: 22–29 October 2026.

GPS + dedicated phone app

Track bike location and movement, and switch the bike off remotely.

48V 25Ah Samsung cells

UL-certified lithium battery.

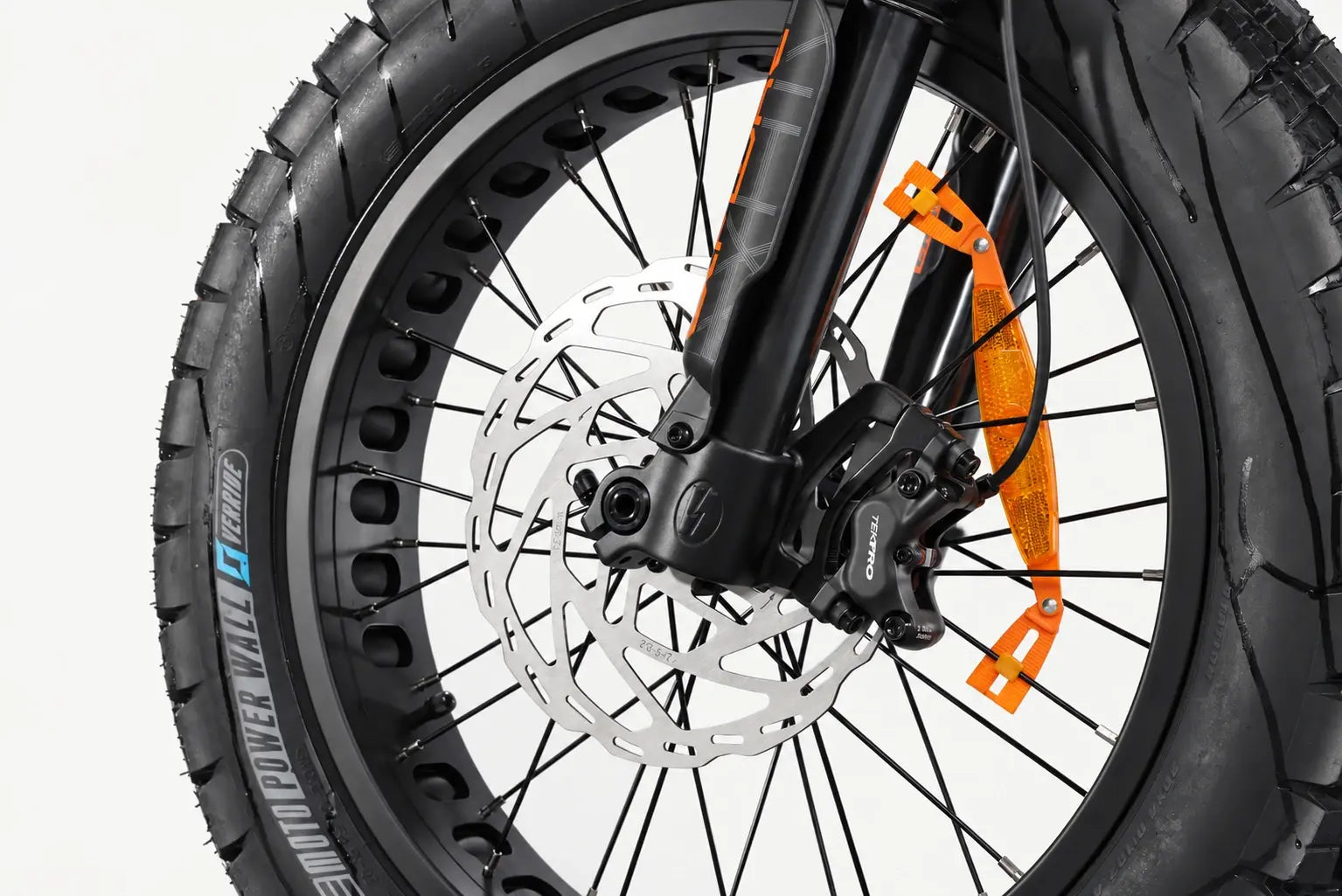

4-piston hydraulic brakes

Front and rear 203mm rotors with Tektro E5140 cut-off levers.

Colour LCD with NFC

Modern display and NFC functionality.

Adjustable dual suspension

Exsho front fork with rebound and KKE rear suspension.

180kg loading capacity

Observe the total bike loading limit.

Motor limited to 250W

BAFANG rear motor; factory speed setting of 25km/h.

Up to 120km; actual range varies with rider and cargo weight, assistance level, terrain, speed, tyre pressure, wind and riding conditions. Range is not guaranteed.

Alpha V3 in detail

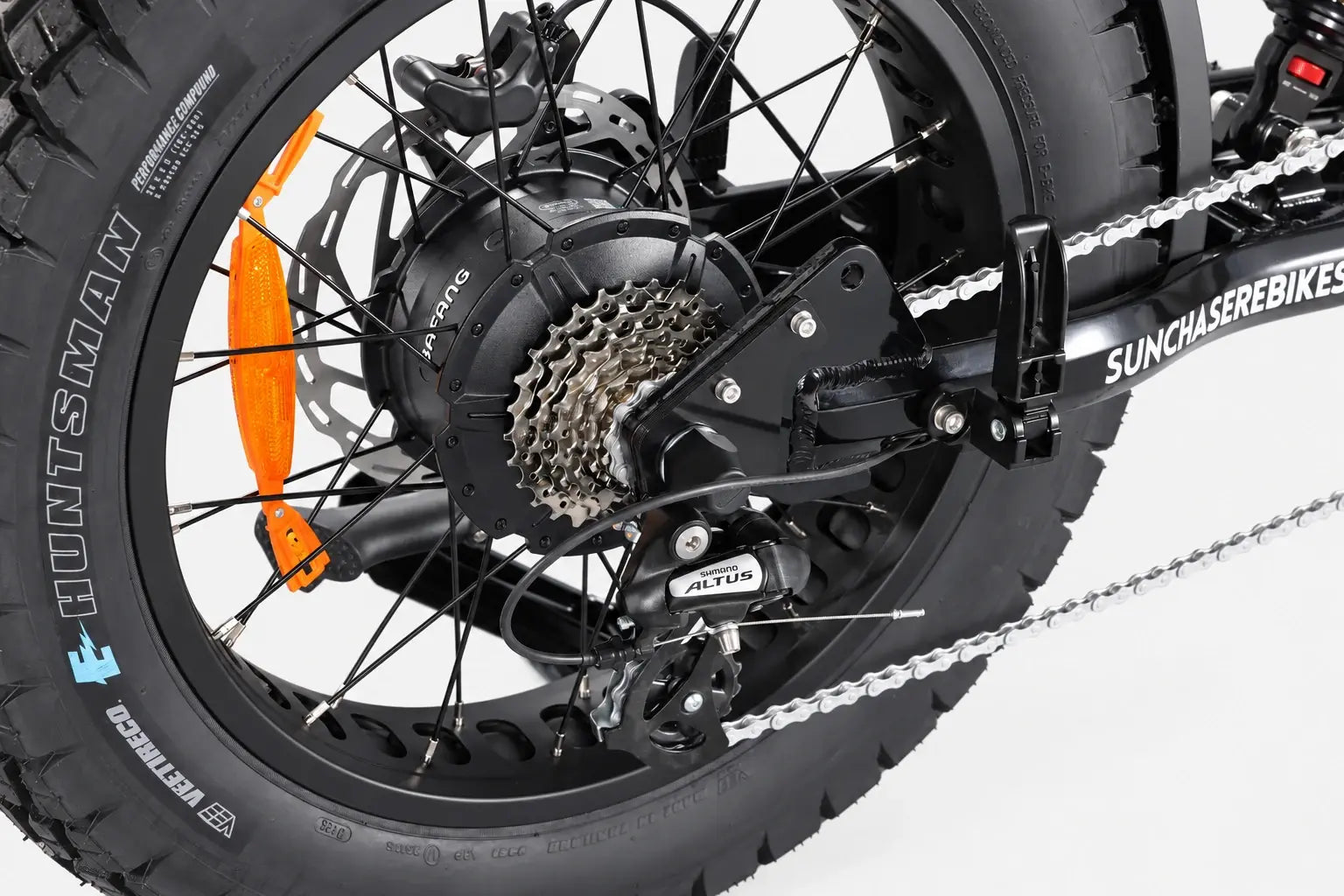

Alpha V3 rear hub motor, gears and chain

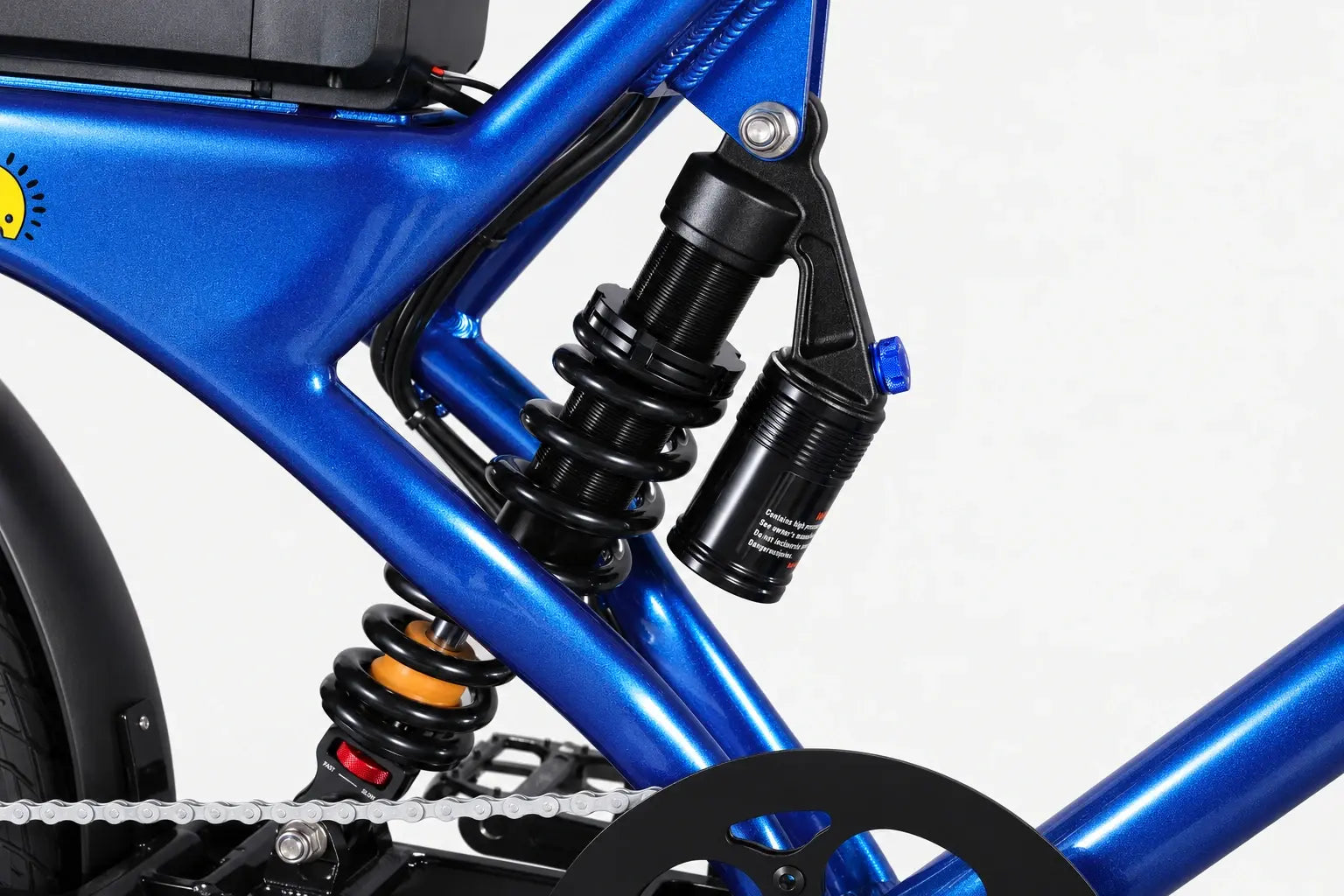

Alpha V3 rear suspension shock and blue frame

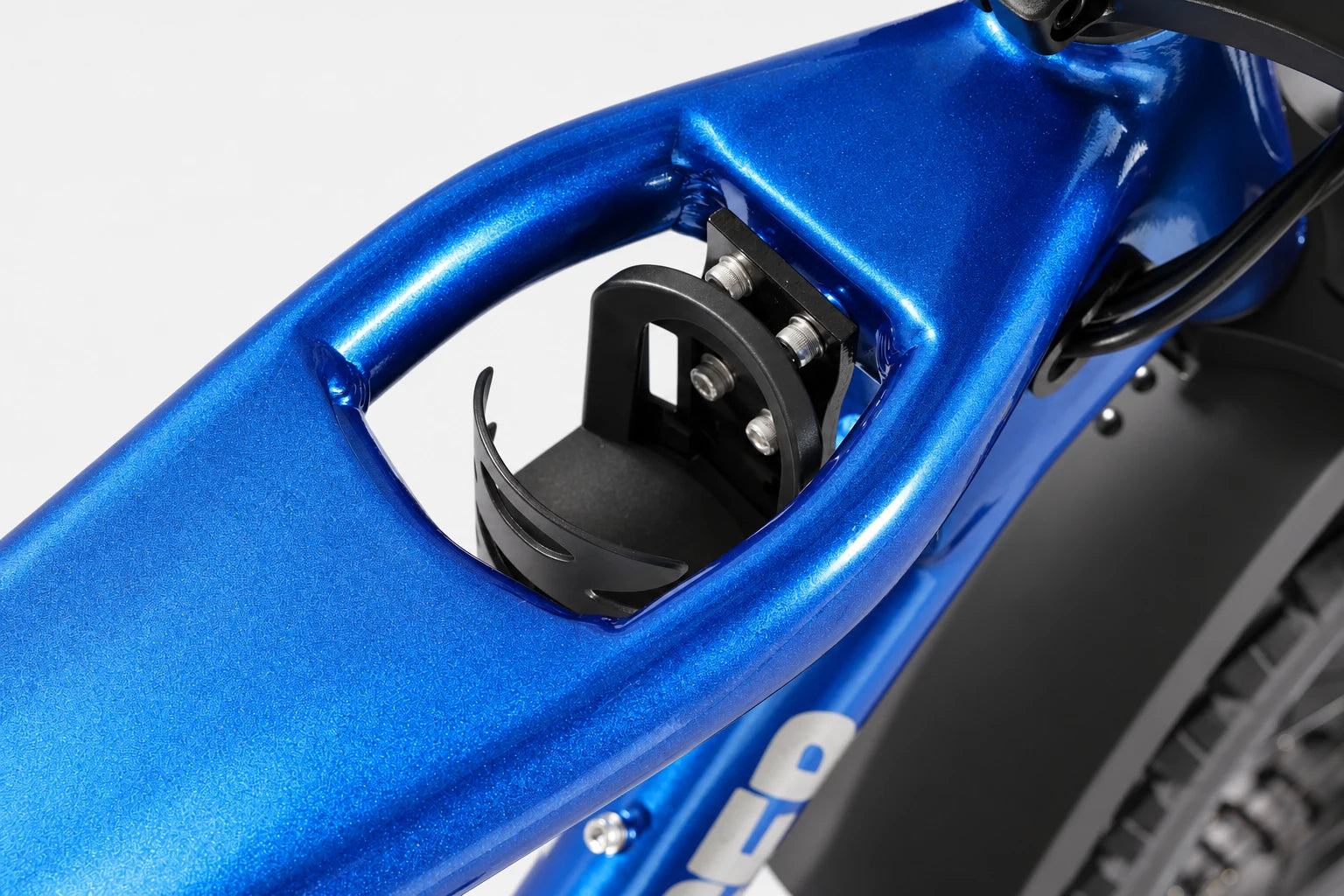

Alpha V3 bottle holder mounted inside the blue frame

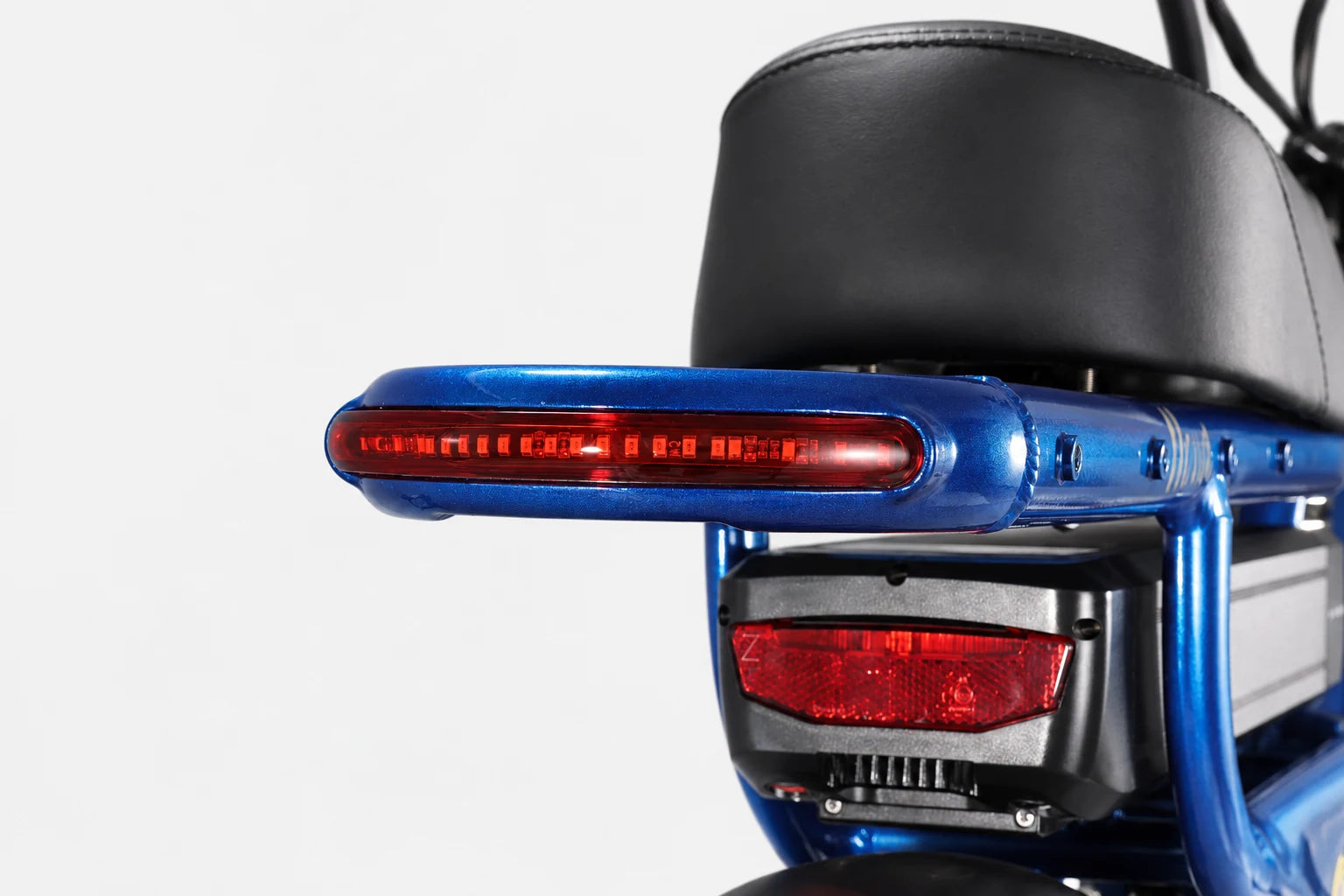

Alpha V3 integrated rear light below the seat

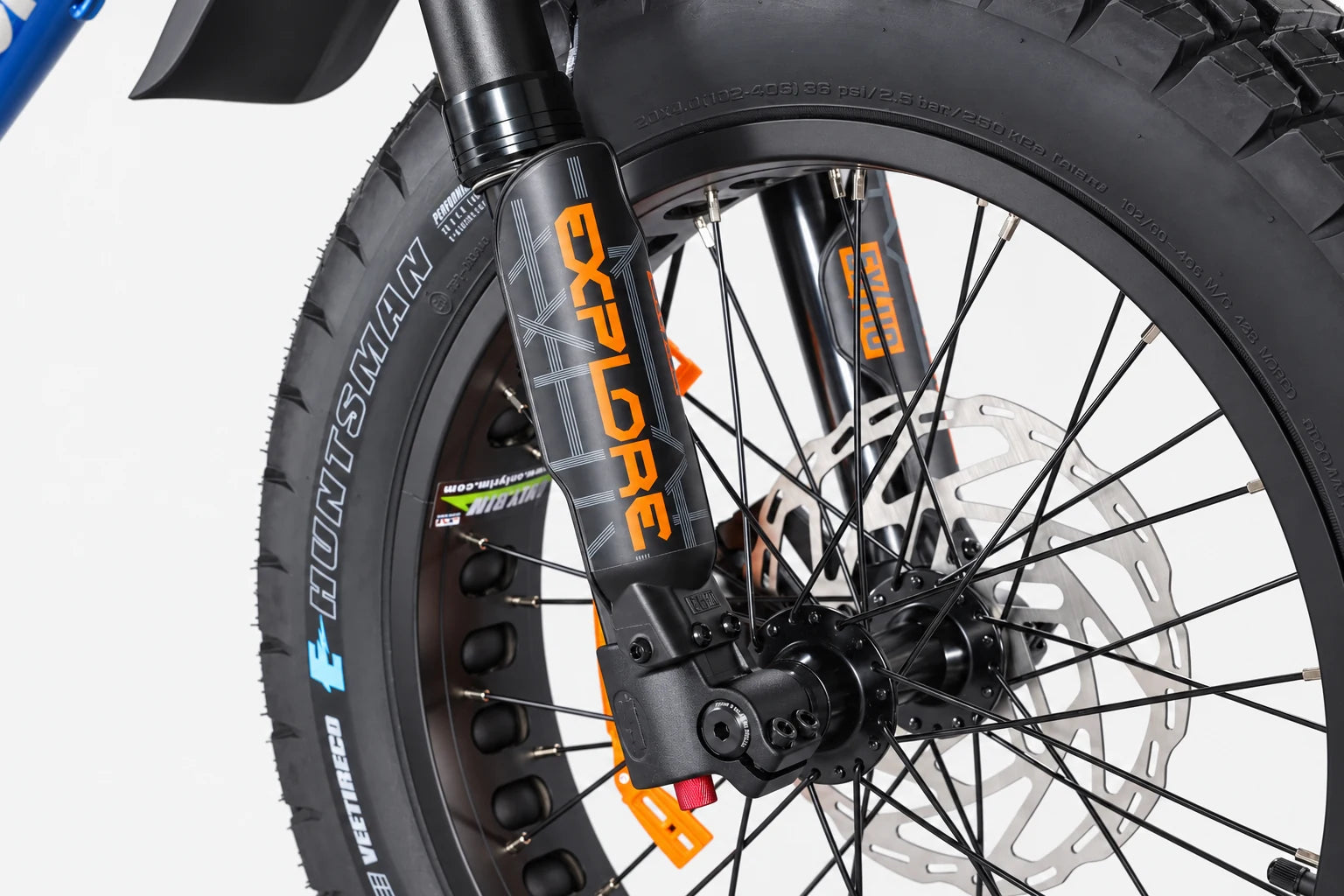

Alpha V3 front suspension fork and front wheel

What makes the Alpha V3 different?

Choose Alpha V3 if you prefer the Alpha frame layout. The Exsho rebound-adjustable front fork and KKE adjustable rear suspension let you tune the setup to your ride. Four-piston hydraulic brakes with 203mm rotors, integrated lights, indicators and a horn round out the everyday equipment.

Both V3 models offer GPS connectivity and a colour LCD with NFC. Choose between them by frame access and riding fit, rather than assuming one has a larger battery.

Local support

Get setup advice, servicing guidance and parts support from Sun Chaser eBikes on the Gold Coast. Contact us about Alpha V3 availability and a test ride.

Compliant road-use configuration

EPAC-compliant electric bike in its supplied road-use configuration. Follow the applicable eBike rules for where you ride.

Battery, range and charging

Battery: 48V 25Ah lithium battery with Samsung cells; UL-certified battery
Charger: 48V 5A, 110–240V input; UL certification specified
Range: Up to 120km; actual range varies with load, terrain, assist level and riding conditions
Charging time: 5–7 hours

GPS, phone app and everyday equipment

Stay connected to your bike through its built-in GPS system and dedicated smartphone app. View its location, keep track of bike movement and switch the bike off remotely from your phone.

Display: Colour LCD with NFC
Lights: Headlight with indicators and horn; tail light with indicators
Equipment: Footrests, kickstand, throttle with isolator, GPS and dedicated smartphone app

Ride specifications and dimensions

Front suspension: Exsho adjustable suspension fork with rebound
Tyres: 20 × 4.0 inch VEE tyres
Chainwheel / crank: 52T doublewall aluminium chainwheel
Chain: KMC Z7RB
Shifter: Shimano SL-M315
Rear derailleur: Shimano M310 Altus
Brake levers: Tektro E5140 with motor cut-off
Brakes: Front and rear 4-piston hydraulic disc brakes with 203mm rotors
Motor: BAFANG 48V brushless rear motor, configured with a 250W limit
Rear suspension: KKE adjustable suspension
Factory speed setting: 25km/h
Net weight: 46kg
Gross weight: 50kg
Loading capacity: 180kg

Warranty and support

12-month warranty on the bike, motor and battery.

Sun Chaser eBikes provides local setup advice, servicing guidance and parts support.

Alpha V3 questions

How do Alpha V3 and Nova V3 differ?
Nova V3 offers step-through access for easier mounting. Alpha V3 retains the Alpha frame layout. Both have a 48V 25Ah Samsung-cell battery, adjustable dual suspension and GPS connectivity.

Will every ride reach 120km?
No. Up to 120km is not a guaranteed distance. Load, assistance level, hills, speed, wind and tyre pressure affect the distance between charges.

What does the GPS app do?
The specified system supports bike location tracking, movement monitoring and remote switch-off.

Can I use my existing child seat or trailer?
V3-specific mounting and carrying compatibility must be confirmed. Do not assume an Alpha V2 or Nova V2 accessory setup transfers unchanged.

Explore our family e-bike and child-seat guide for setup ideas, or compare e-bike locks. Accessory fit must be checked for the V3 model; GPS does not replace a physical lock.

Accessories for this bike

Recommended family accessories for your AlphaV3: Hamax child carriers and trailers.

Family adventures

Hamax Zenith Relax Child Bike Seat with Carrier Adapter

Hamax reclining child carrier. Confirm rack suitability, mounting and child weight limits with Sun Chaser.

$249.95

View accessory

Hamax Outback Next One Trailer - One Child

Single-child trailer for family outings. Confirm hitch and axle compatibility with Sun Chaser.

$1,799.95

View accessory

Hamax Traveller Bike Trailer

Hamax child trailer for family adventures. Confirm hitch and axle compatibility with Sun Chaser.

$949.95

View accessory

Accessories sold separately. We can help confirm the right child carrier, trailer and mounting setup for your family.
